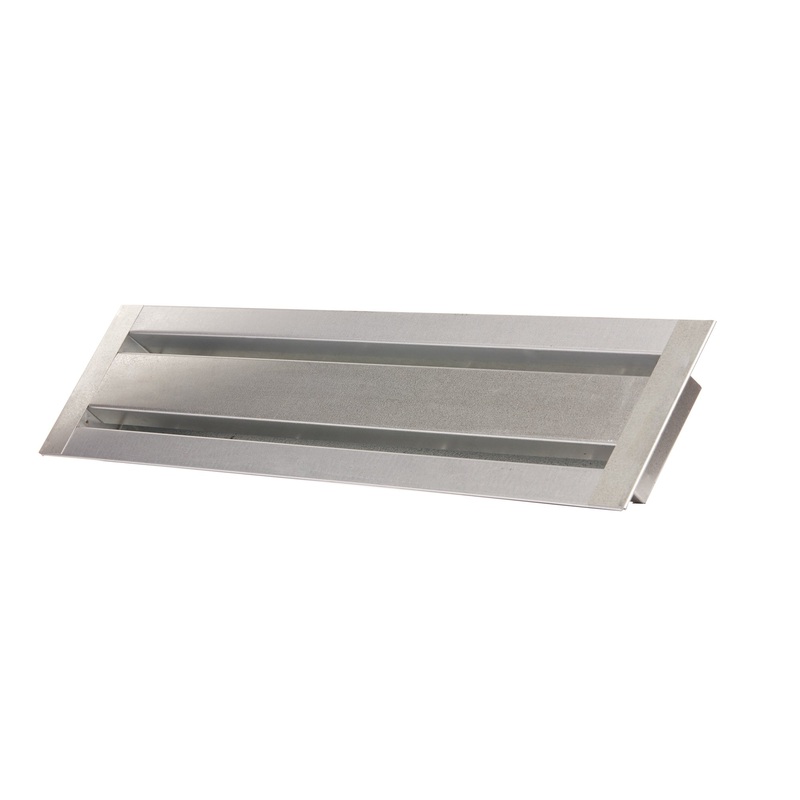

3x 60Soffit Vent Model # CS2011

KEY SPECIFICATION

Product Spec Sheet

CS2011-FF 3x 60

• Safety vents that are used in areas prone to wildfires, wind driven rain, or winddriven snow.

• Overlapping Baffle Protection (Patented)
  oAirFlowsthroughnormally
  oResists the intrusion of Flame and Embers, Wind Driven Rain and

  Snow

• Approved for use throughout California and beyond

• Anti -Clogging Overlapping Baffles plus 1/8 mesh on back side ofvent

• Prevents Rodent Entry

• 20 Year Warranty

• Easy to Install, Retrofit and Paint

  STANDARD MATERIALS

  ASTM A653/A653M- G90 hot dipped galvanized steel, 26GA
  ASTM D9092- mill phosphatized coating for painting. IF BONDERIZED ASTM b370- Sheet Copper, 16oz and 20oz IF GALVANIZED
  .025 x.025 hot dipped galvanized 23ga wire mesh

  Installation:Install like any other similar Ventilator Product on the market.

WARNING: Do NOT cut product prior to installation. This will void all warranties. If smaller lengths are needed, please measure and order custom lengths prior to installation

PLEASE CHOOSE YOUR DESIRED FLANGE
